Dycoled

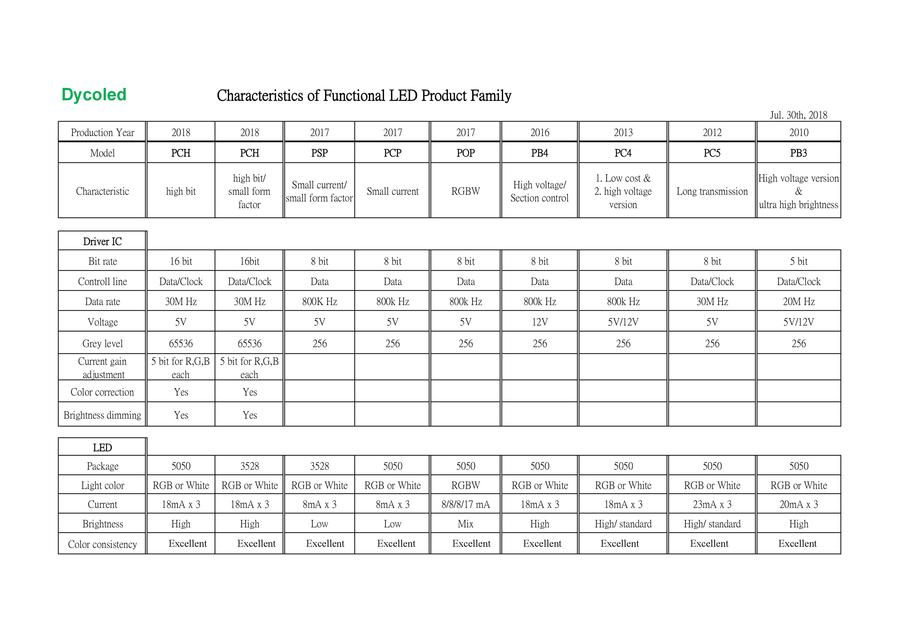

（Smart/Magic LED with IC Inside) 		Characteristics of Functional LED Product Family
Production Year 2020 2020 2020 2019 2019 2019 2019
Model PD4 PQP SV4f PC4e PS4e
 PC4m PC7/ PS7
　
Characteristic Small form factor RGBW RGB side view Small current Small current/small form factor 1. Low cost &
2. high voltage version		 high bit/ small form factor
Driver IC 　
Bit rate 8 bit 8 bit 8 bit 8 bit 8 bit 8 bit 13 bit
Controll line Data Data Data Data Data Data Data/Clock
Data rate 800k Hz 800k Hz 800k Hz 800k Hz 800k Hz 800k Hz 15M Hz
Voltage 5V 5V 5V 5V 5V 12V 5V
Grey level/
Channel		 256 256 256 256 256 256 256/3
Current gain
adjustment		 　 　 　 　 　 　 5 bit for R,G,B
　
Color
correction		 　 　 　 　 　 　 Yes
Brightness
dimming		 　 　 　 　 　 　 Yes
LED 　
Package 3535(4 pins) 5050(4 pins) 4020(side view) 5050 3528 5050 5050
Light color RGB or White RGBW RGB or White RGB or White RGB or White RGB or White RGB or White
Current 12mA x 3 8/8/8/17 mA 12mA x 3 5mA x 3 5mA x 3 12mA 18mA x 3
Brightness High Mix standard Low Low Mid High
Color consistenc Excellent Excellent Excellent Excellent Excellent Excellent Excellent
Status MP MP MP MP MP MP MP





Production Year 2018 2018 2017 2017 2017 2016 2013 2013 2012 2010
Model PCH PSH PSP PCP POP SB4/4F PC4N
(Compatible with ws2813) 		PC4/4F (Compatible with ws2812 & sk6812) PC5 PB3
　
Characteristic high bit high bit/ small form factor Small current/ small form factor Small current RGBW High voltage/ Section control 1. Low cost &
2. high voltage version		 1. Low cost &
2. high voltage version		 Long transmission High voltage version & ultra high brightness
Driver IC 　
Bit rate 16 bit 16bit 8 bit 8 bit 8 bit 8 bit 8 bit 8 bit 8 bit 5 bit
Controll line Data/Clock Data/Clock Data Data Data Data Data Data Data/Clock Data/Clock
Data rate 30M Hz 30M Hz 800K Hz 800k Hz 800k Hz 800k Hz 800k Hz 800k Hz 30M Hz 20M Hz
Voltage 5V 5V 5V 5V 5V 12V 5V/12V 5V/12V 5V 5V/12V
Grey level/
Channel		 65536 65536 256 256 256 256 256 256 256 32
Current gain
adjustment		 5 bit for R,G,B each 5 bit for R,G,B each 　 　 　 　 　 　 　 　
Color
correction		 Yes Yes 　 　 　 　 　 　 　 　
Brightness
dimming		 Yes Yes 　 　 　 　 　 　 　 　
LED 　
Package 5050 3528 3528 5050 5050 5050 5050 5050 5050 5050
Light color RGB or White RGB or White RGB or White RGB or White RGBW RGB or White RGB or White RGB or White RGB or White RGB or White
Current 18mA x 3 18mA x 3 8mA x 3 8mA x 3 8/8/8/17 mA 18mA x 3 18mA x 3 18mA x 3 23mA x 3 20mA x 3
Brightness High High Low Low Mix High High/ standard High/ standard High/ standard High
Color consistenc Excellent Excellent Excellent Excellent Excellent Excellent Excellent Excellent Excellent Excellent
Status
 MP MP Phase out Phase out Phase out Phase out MP Phase out MP Phase out




PB3XS301V050

1.1. Features

  • Functional led, pixel controllable.
  • Small package with integrated RGB leds and 5 bits driver IC.
  • Easy control by MCU.
  • Simplifying circuit design and PCB layout for designer.
  • Diffused encapsulant to make excellent distribution for luminous intensity and radiation. (patent pending)
  • The Highest Luminous performance with lower current package.
  • white balance, light mixing patent design
  • Wide viewing angle: 120 degree

1.2. Protocol

  • The first 32 bits of "0" is the start frame data, followed by data frame. At the rising edge of CIN(Clock In),
    the high bit of start frame is sent first, then the low bit.
  • The MCU next to the controller receives the first data frame, the frame contains one start bit of "1"
    and three sets of 5-bit gray level data for RGB.

  • After the data is read into the MCUs , the controller send the corresponding pulse to MCUs,
    then the new data goes into effect.

1.3. Specifications

 Dimension  (mm)

Color

Luminous Intensity (mcd)

   Wavelength      (nm)

Forward Voltage(V)

View   Angle

 5.0*5.0

*1.3

 Full

Color

Red

 500~650

 620-625



4.5~7.0



120

Green

 1100~1500

 523-528

Blue

 300~500

 465-475
